Code: MG3755406

Bratt pan Metos Futura 85L (pan 790x530x90mm)

The short preheating time and strong electrical tilting makes cooking with Metos Futura 85L bratt pan more ergonomic and effortless.

List price €7,572.00 Promotion price €6,700.00
On order
The short preheating time and strong electrical tilting makes cooking with Metos Futura 85L bratt pan more ergonomic and effortless.

L = frying zone 790x530x90 mm.

The frying surface is made of thick steel which stores heat extremely well throughout the whole frying area. The volume of the pan area is 37 liters. The temperature is adjustable between 0...+250°C. The heating time, to the set temperature, lasts for 5-6 minutes. The seamless surfaces and rounded corners make's the pan easy to clean.

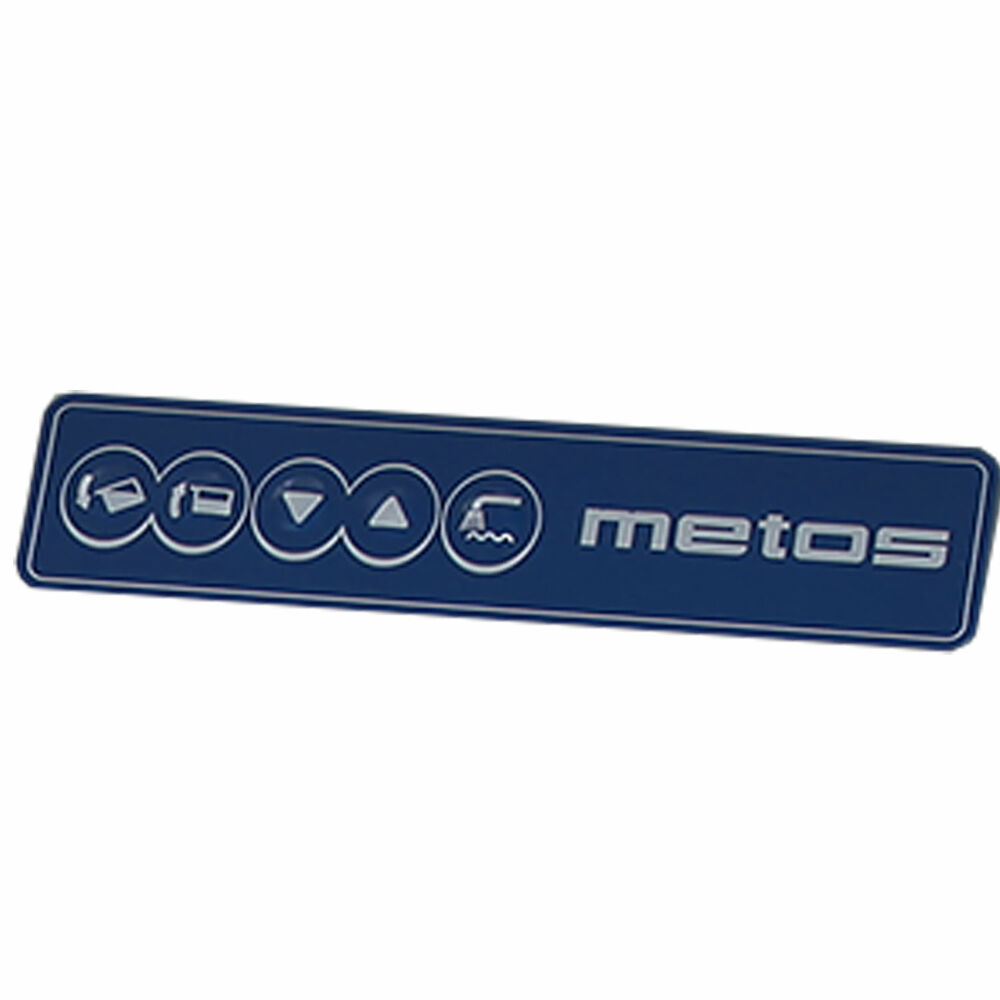

Metos Futura 85L bratt pan has a strong electrical tilting, which makes emptying of the pan more ergonomic. Tilting cannot be started if the lid is closed or the water filling (option) is in progress. Manual tilting is available as a factory option. In addition, the bratt pan can be equipped with height adjustment function (factory option) and water filling tap (factory option). Height adjustment and water filling works by pressing a button.

- balanced lid
- stainless steel external surfaces and lid
- uniform stainless steel frying area
- electro mechanical control
- overheating protection

FACTORY OPTIONS (to be ordered together with the bratt pan):
- height adjustment 800-950 mm
- manual tilting

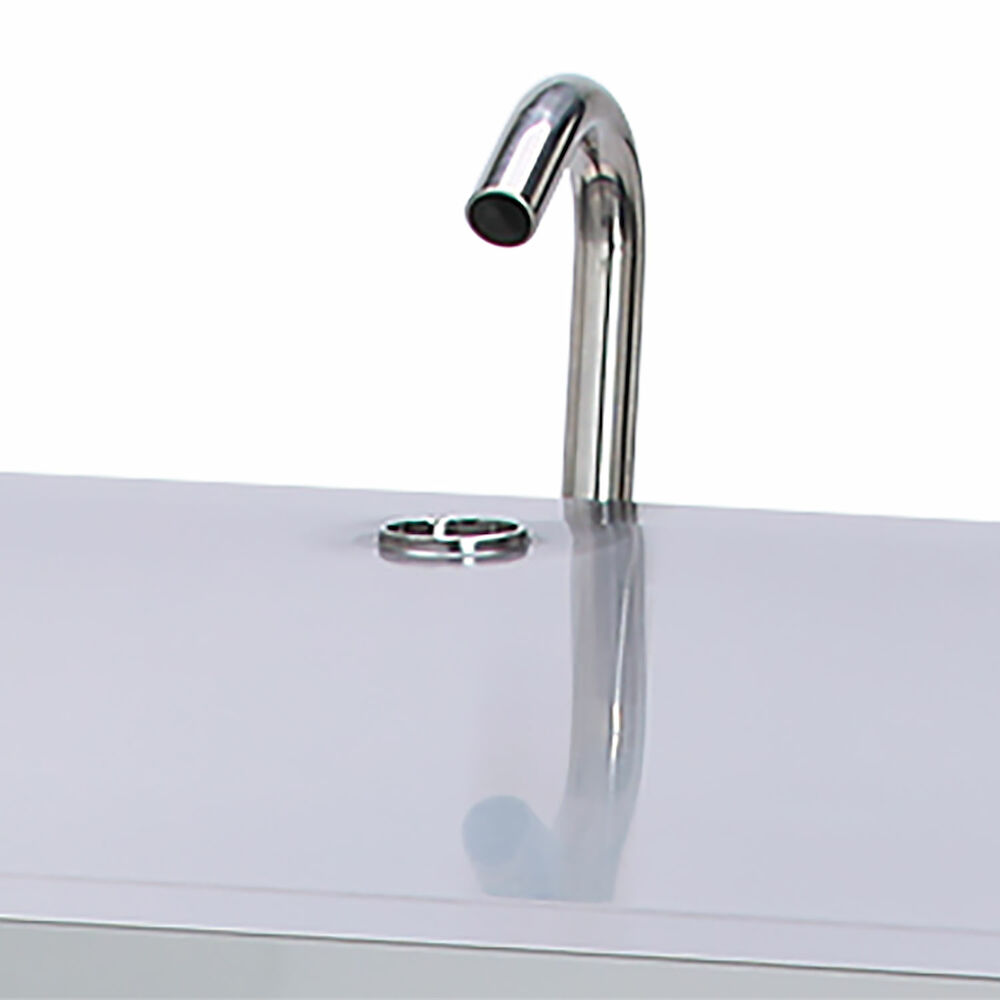

- water tap
General
Description Bratt pan Metos Futura 85L (pan 790x530x90mm)
Dimensions and Capacity
Product capacity 37 L, frying surface 790 x 530
Capacity 850×806 ×954
Item width mm 850
Item depth mm 806
Item height mm 954
Package volume 1.058 m3
Package dimensions (LxWxH) 98x90x120 cm
Net weight 170 kg
Package weight 200 kg
Technical information
Connection power kW 10.5
Fuse Size A 16
Connection voltage V 400
Number of phases 3NPE
Frequency Hz 50
Startup current A 15
Protection rating (IP) X3
Type of electrical connection Fixed
Electrical conn. height mm 360
Features
Raw material Stainless steel
Operation type electromechanical
Cleaning hand wash
Temperature area ºC 50-250
Pan volume L 85
Tilting electric
Temperature probe No
Oil filtering No
Timer No
Installation
Installation floor model
Energy and Consumption
Power type electric
