Code: MG4321516

Chilled display Metos Green GE-80-88-E-R290

Metos Gastro GE-80-88-E is a recessable into furniture, seller-served chilled display, designed for use under demanding conditions, with a width of 800 mm and h…

List price €10,753.00

On order

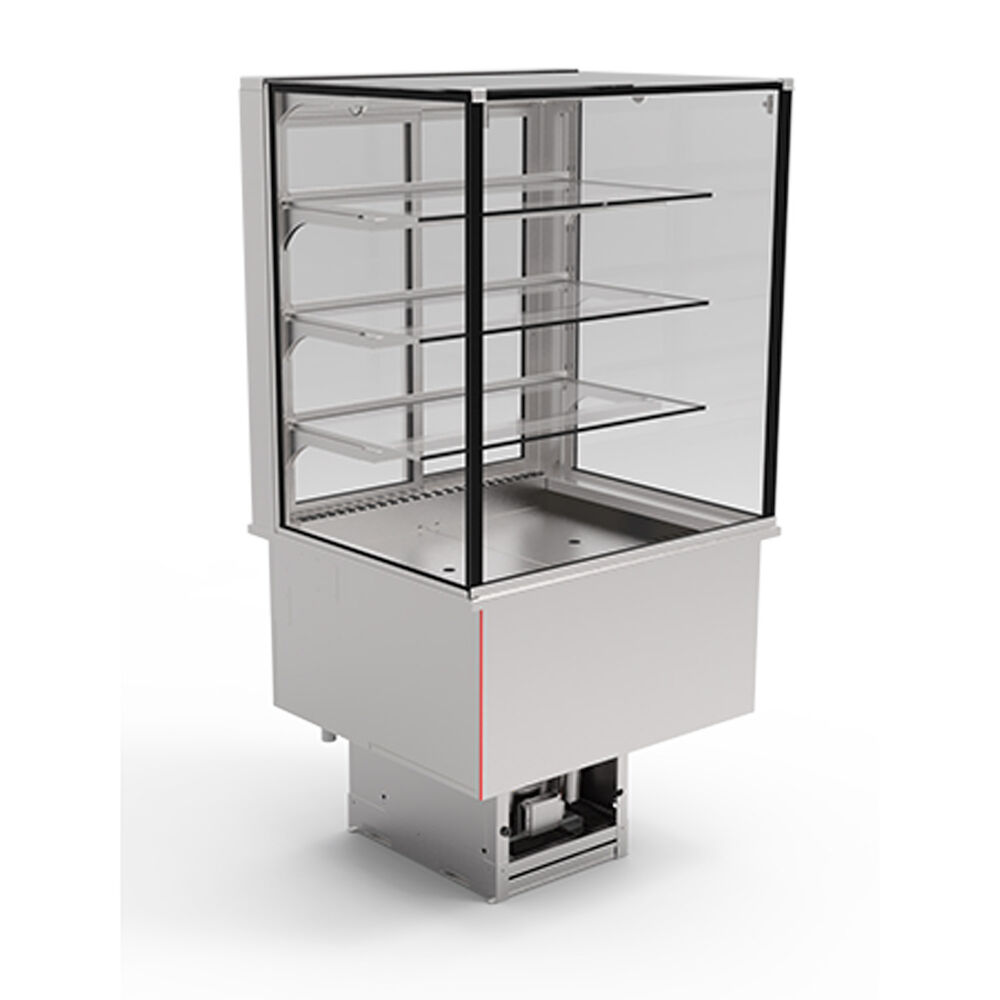

Metos Gastro GE-80-88-E is a recessable into furniture, seller-served chilled display, designed for use under demanding conditions, with a width of 800 mm and height of 880 mm. The simple angular shape of the chilled display highlights the products being sold.

The display's tempered glass side panels, the glass shelf and the bright LED lighting for shelves and the cold tub make products being sold highly visible. In addition, the front glass of the display serviced by the seller provides a panoramic view of the products inside. The seller's side is equipped with handy sliding doors. The glass shelf can be regulated +/-25 mm and can be angled, which simplifies product selection. A 215 mm adjustable height cooled tub with Gastronorm dimensioning.

A great deal of attention has been paid to simplifying the cleaning of the Metos Gastro GE-80-88-E display. The display portion lacks virtually any seams and is easy to wipe clean. The tub's plates, which are made of stainless steel, can be removed and lifted up in order to clean the evaporator element. For those installation locations where it is not possible to connect the display to the grey water system, an evaporation tank is included as an accessory.

The display is equipped with air cooled chilling, digital temperature control and ventilator speed regulator. Temperature can be regulated between +2 °C...+4 °C. The front glass, side glass panels and the glass shelf are made from tempered glass. The substructure is made from stainless steel and insulation is polyurethane.

- recessable into furniture (cut out size 740 x 670 m)
- shelf and tub lighting
- tempered front glass, side panels and shelf
- sales space 0,89 m2
- temperature can be regulated between +2 °C...+4 °C
- climate class 3M1
- digital temperature regulation
- ventilator speed regulator

EXTRA ACCESSORIES (can be ordered separately):
- base; Open stand or Tubular body stand
- - price tag frame

- - door locks

- evaporation tank; Manual or Electrical 1000W
- remote cooled model

General
Description	Chilled display Metos Green GE-80-88-E-R290

Dimensions and Capacity
Product capacity	2x GN1/1
Item width mm	800
Item depth mm	695
Item height mm	880/1560
Package volume	2.252 m3
Package dimensions (LxWxH)	110x105x195 cm
Net weight	210 kg
Package weight	230 kg

Technical information
Connection power kW	0.314
Fuse Size A	10
Connection voltage V	230
Number of phases	1NPE
Frequency Hz	50
Drain diameter	30
Cooling capacity W	590
Type of the refrigerant	R290
Sound level dB	70
