Code: MG4240945

Multifunction cabinet Metos HiChef SBMR-120-HA-R290 Right-handed

List Price €20,671.00
On order
General
Description Multifunction cabinet Metos HiChef SBMR-120-HA-R290 Right-handed
Dimensions and Capacity
Product capacity 70kg/+70...+3, 50kg/+70...-18
Inside measures mm 670
Item width mm 850
Item depth mm 870
Item height mm 1860
Package volume 1.852 m3
Package dimensions (LxWxH) 95x97x201 cm
Net weight 200 kg
Package weight 240 kg
Technical information
Connection power kW 3.585
Fuse Size A 16
Connection voltage V 400
Number of phases 3N
Frequency Hz 50
Startup current A 10.83
Protection rating (IP) X4
Type of electrical connection Plug
Cold water diam. 1/2''
Drain diameter 53
Floor drain needed Yes
Cooling capacity W 2274
Condensing temperature °C +45
Evaporation temperature °C -25
Type of the refrigerant R290
Quantity of refrigerant g 300
Sound level dB 70
Features
Hinge location right
GN size 1/1
Temperature area ºC +85°C / -40°C
Rail distance mm 37.5
Lighting without lighting
Cooling unit With cooling unit
Defrosting automatic
Temperature probe Yes
Fill in trolleys Yes
Glass door No

Services and accessories

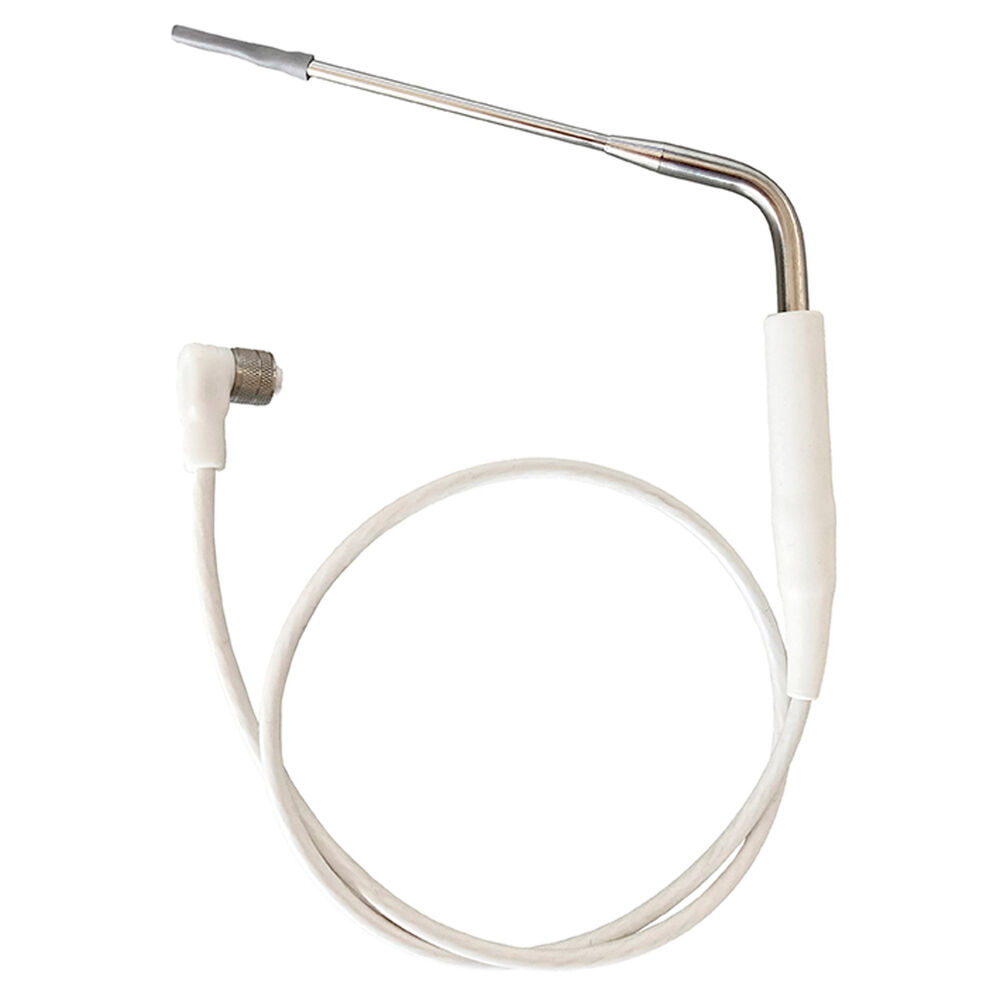

1,2Mt. Vacuum probe for Metos SBM-091-161
On order

1,2Mt. Vacuum probe for Metos SBM-091-161

List Price €380.00

1,2Mt. Monopoint probe for Metos SBM-091-161
On order

1,2Mt. Monopoint probe for Metos SBM-091-161

List Price €302.00

1,2Mt. Multipoint probe for Metos SBM-091-161
On order

1,2Mt. Multipoint probe for Metos SBM-091-161

List Price €358.00

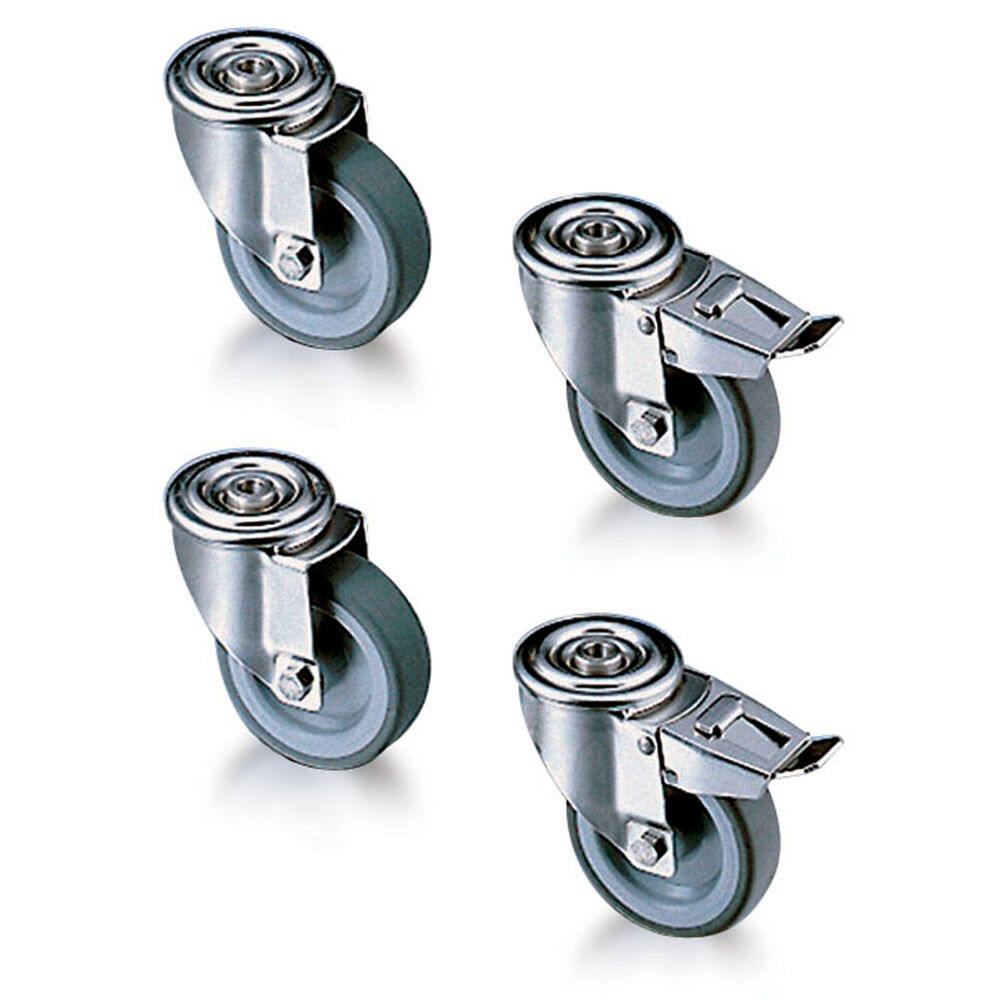

Wheel kit with brake for Metos SBM-091/121/161/R-120
On order

Wheel kit with brake for Metos SBM-091/121/161/R-120

List Price €269.00
